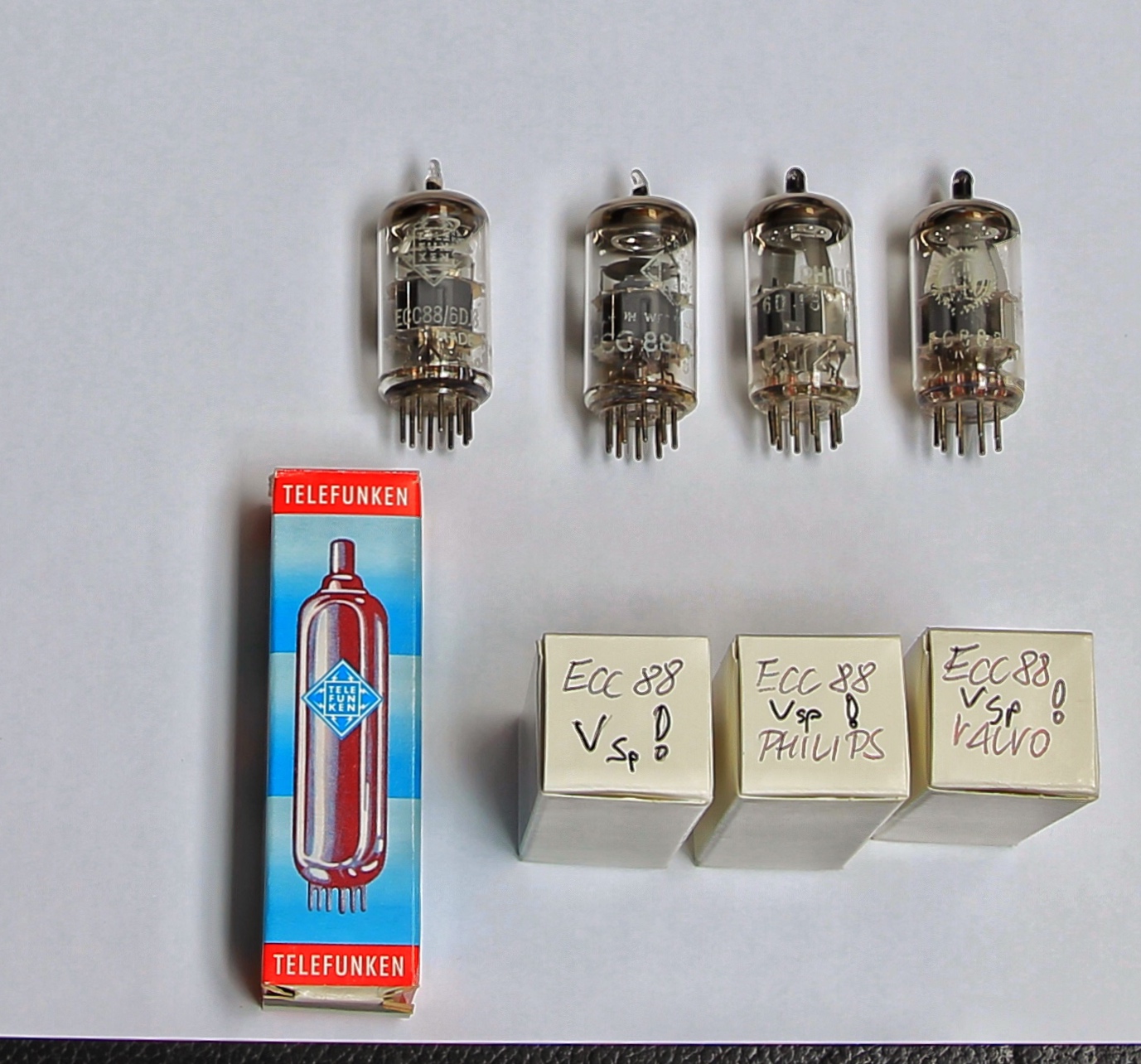

On advice I replaced the tubes in my Zanden phono stage by using NOS tubes from the 60ies of the last century. cleaning the sockets should reduce the resistance, less noise is the result. Will show images after cleaning.
it is a mayor step forward!

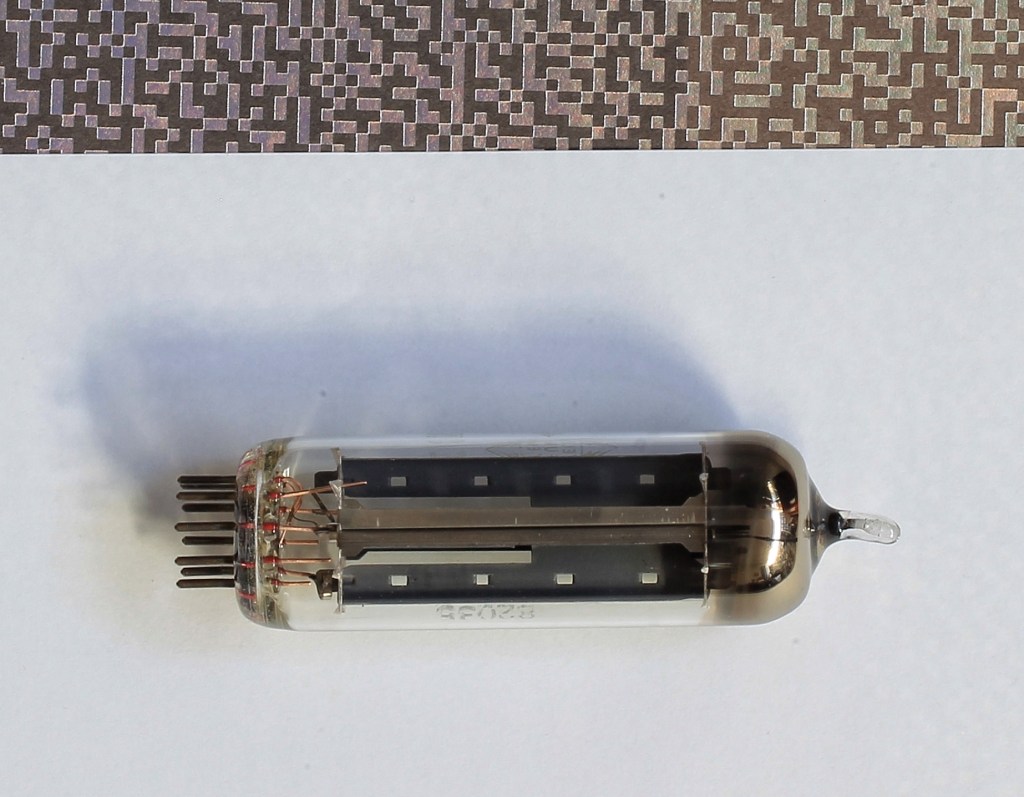

the power supply received a NOS Telefunken EZ 81. Okay, more cleaning… 😂

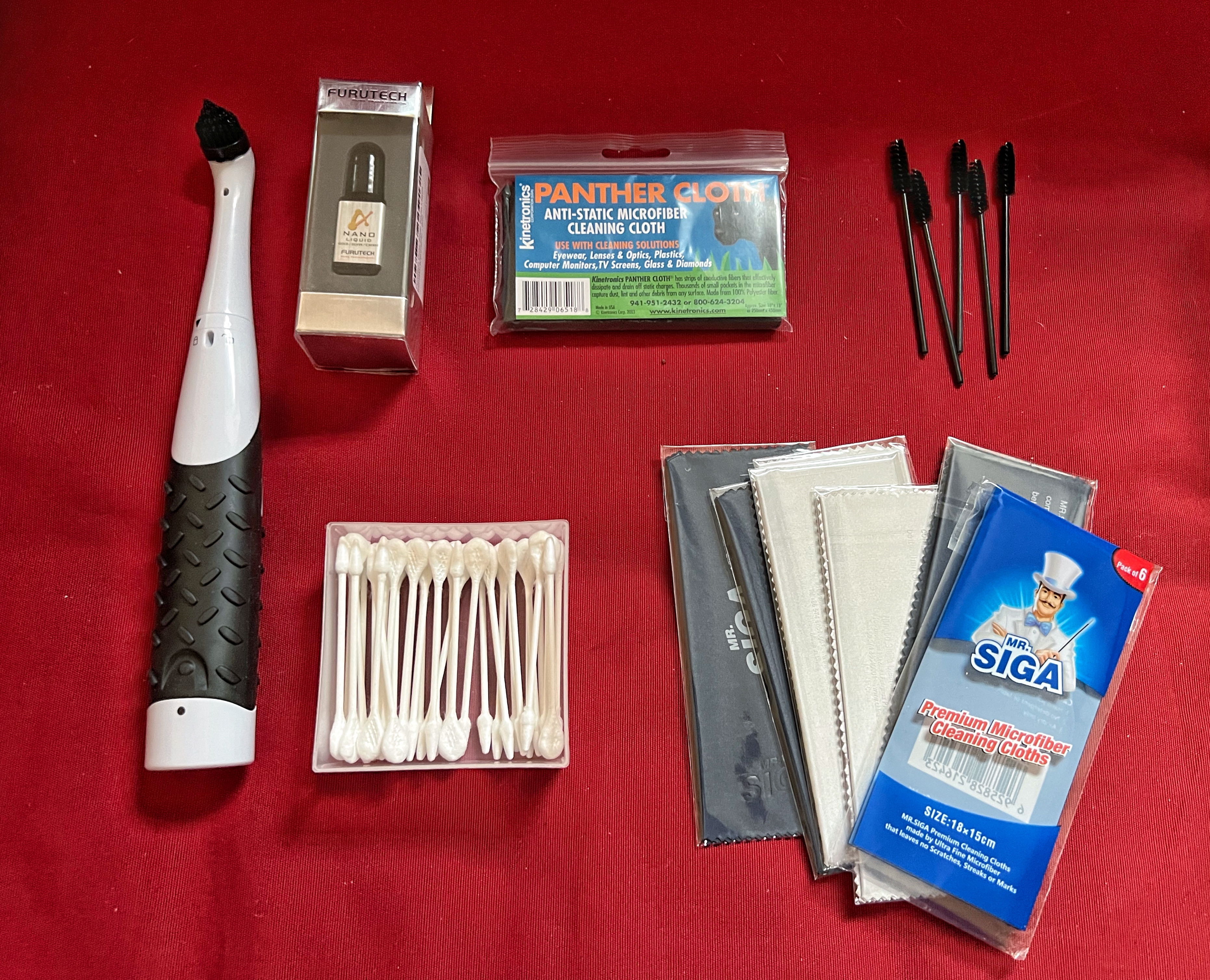

this is a picture of the cleaning set:
before …

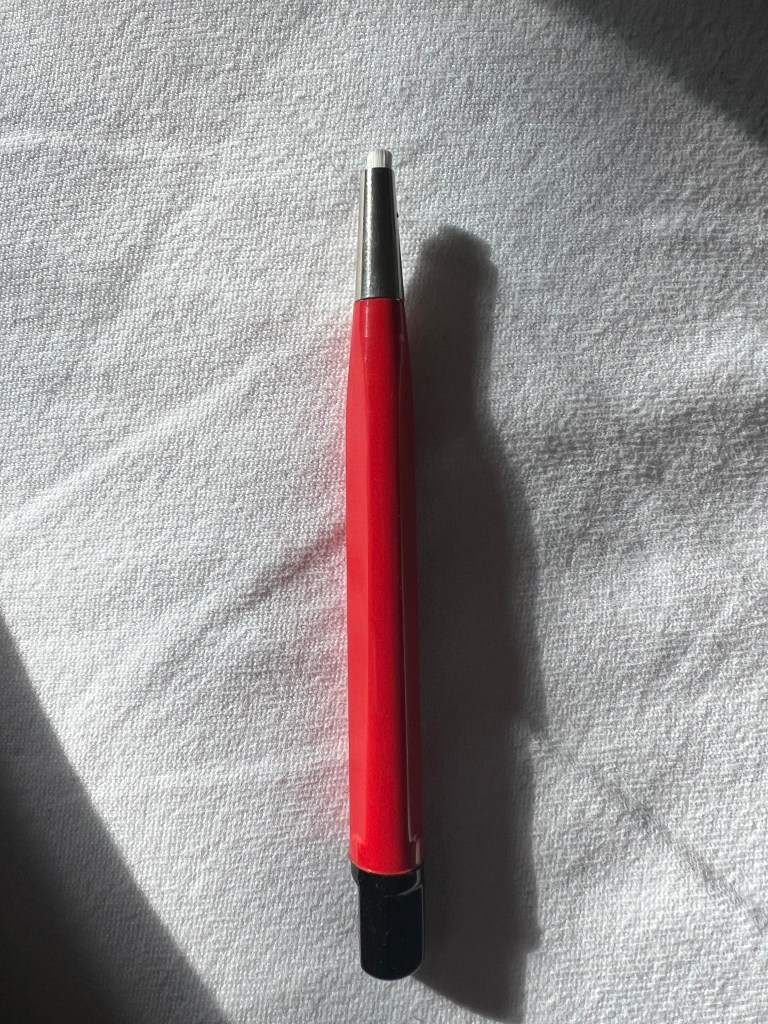

glass fiber pen
result! … after cleaning

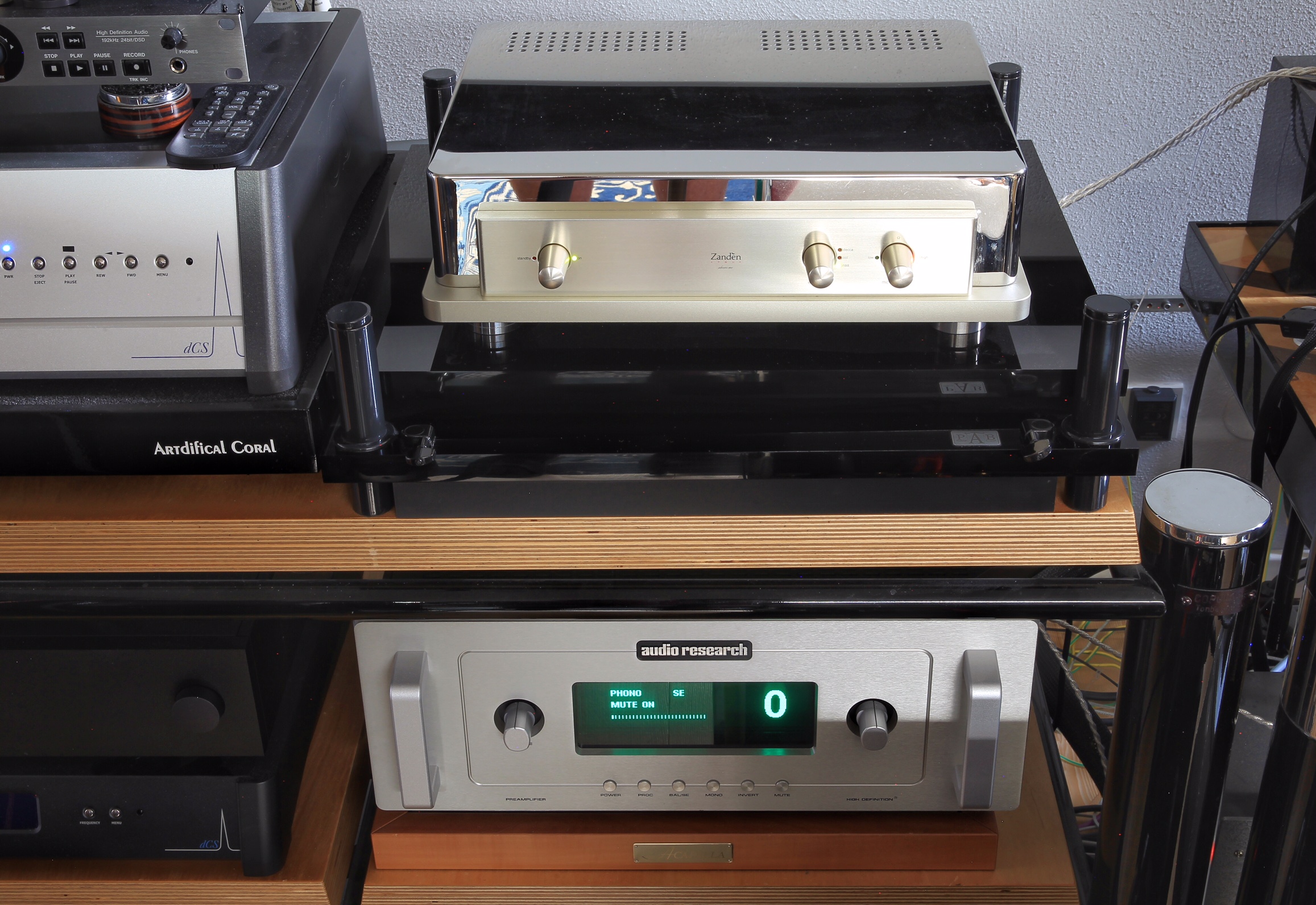

Zanden MK II :
EQ curve positionsRIAA, TELDEC, EMI, COLUMBIA, DECCA are combined with 3 positions of 4th time constantInputsLow impedance MC cartridge x1 (XLR or RCA)High impedance MC cartridge x1 (XLR or RCA)Input impedancelow: 35Ωhi: 480ΩOutputsXLR and RCAOutput impedance300ΩGainLow MC: 64dB (1kHz, RIAA)High MC: 54dB (1kHz, RIAA)Frequency deflection0.5dB (20Hz – 30kHz) maximumTotal harmonic distortion0.13% @ 2V RMS output, 1kHzSignal to Noise-73dB (IHF-A, 5.0mv RMS)Tube complimentMain unit : 6922 x6Power supply unit : 6922 x1, 6CA4 x2Channel balance0.5dB maximumPower consumption75WDimensions(main) W: 398mm / H: 103mm / D: 405mm(power) W: 155mm / H: 163mm / D: 336mmWeight(main) 9.0kg(power) 8.0kg
AudioCirc.com

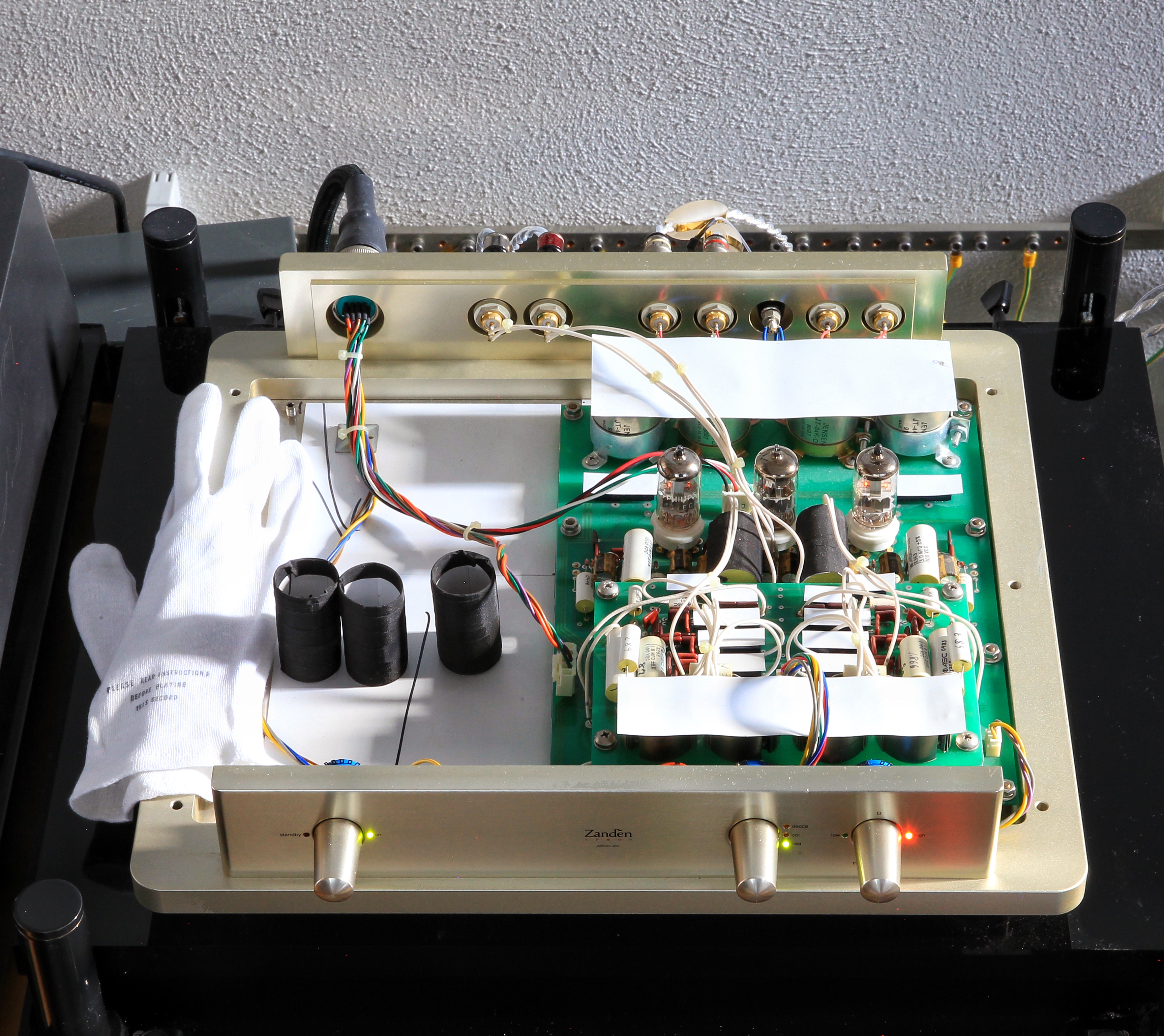

Utility compels me to ask why many of the components have what look like pieces of white paper atop them? Thank you and best wishes from London,UK. Alastair
LikeLike
Alastair,
It is a very good question. We all do not know what it is for, which supporting function the white paper has. I asked the technical departement of ZANDEN. Hope we will get an answer.
Best
E.
LikeLike
ZANDEN replied friendly:
It is RF noise absorption material sheet made in Japan.
We used it about 20 years ago.
Now we adopt another kind of material.
Such RF noise absorption material is useful to increase the performance of hifi products.
