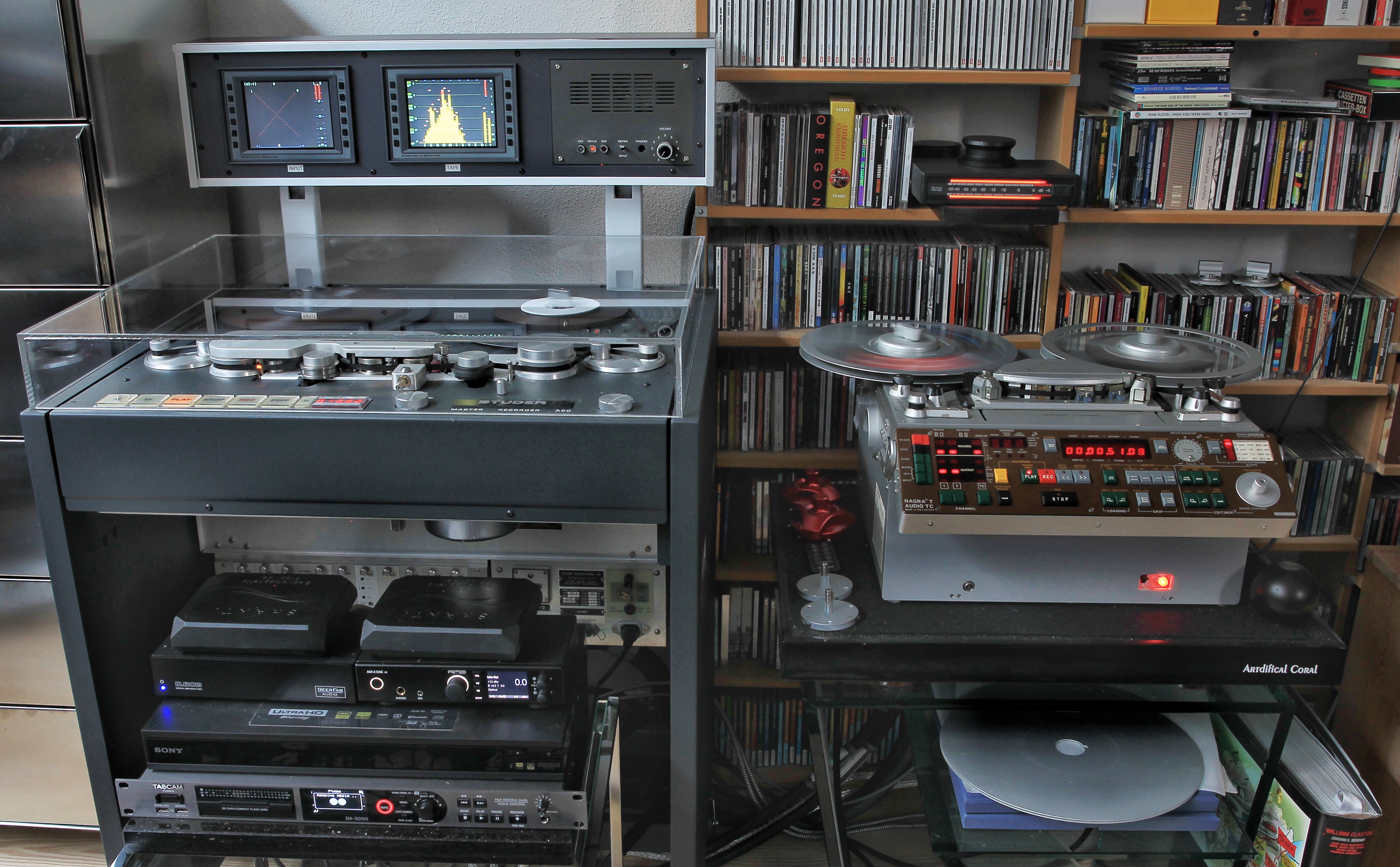

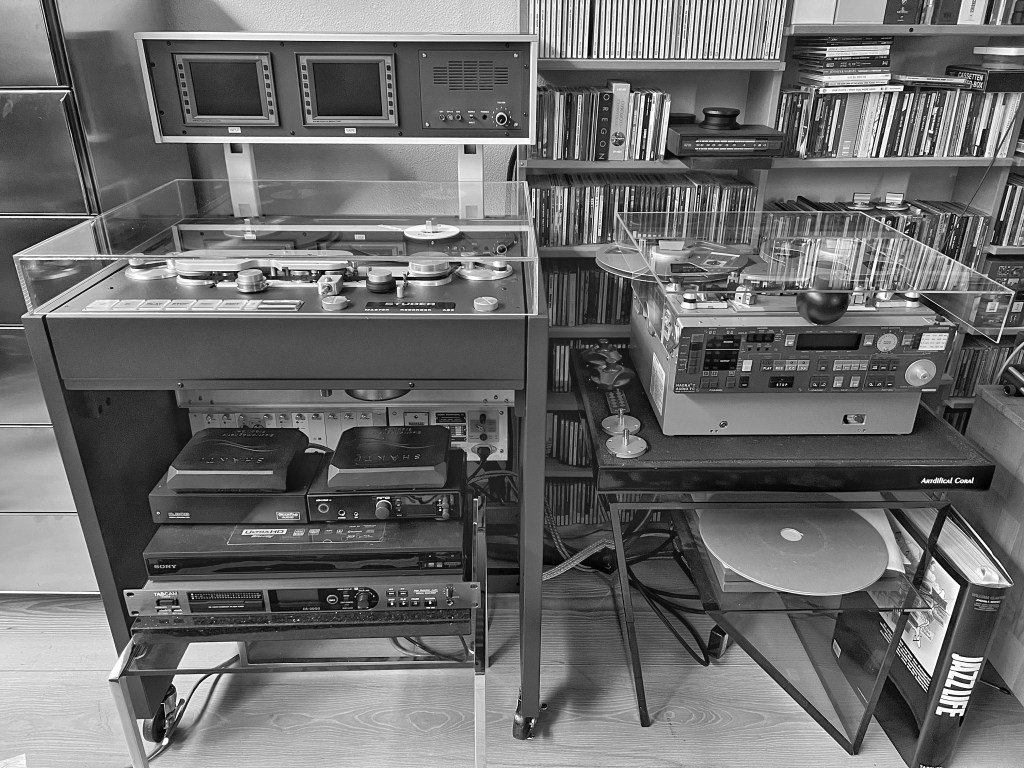

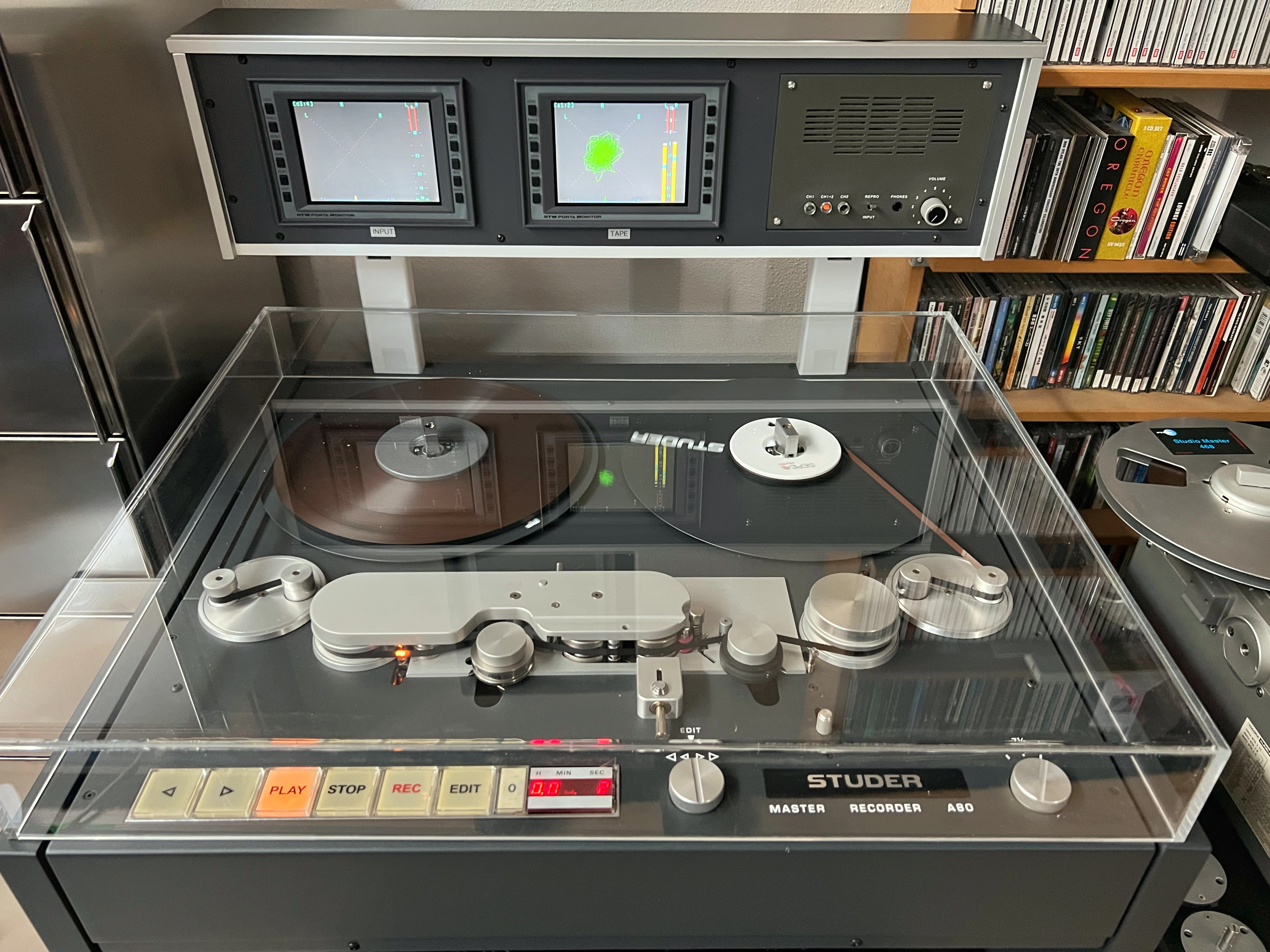

I have installed my SACD recording unit with the TASCAM miniSD recording unit (DSD 5.6) behind my analog A80, thus recording from my tapes but also from SACD discs (Sony Player) via the DAC and D.BOB.

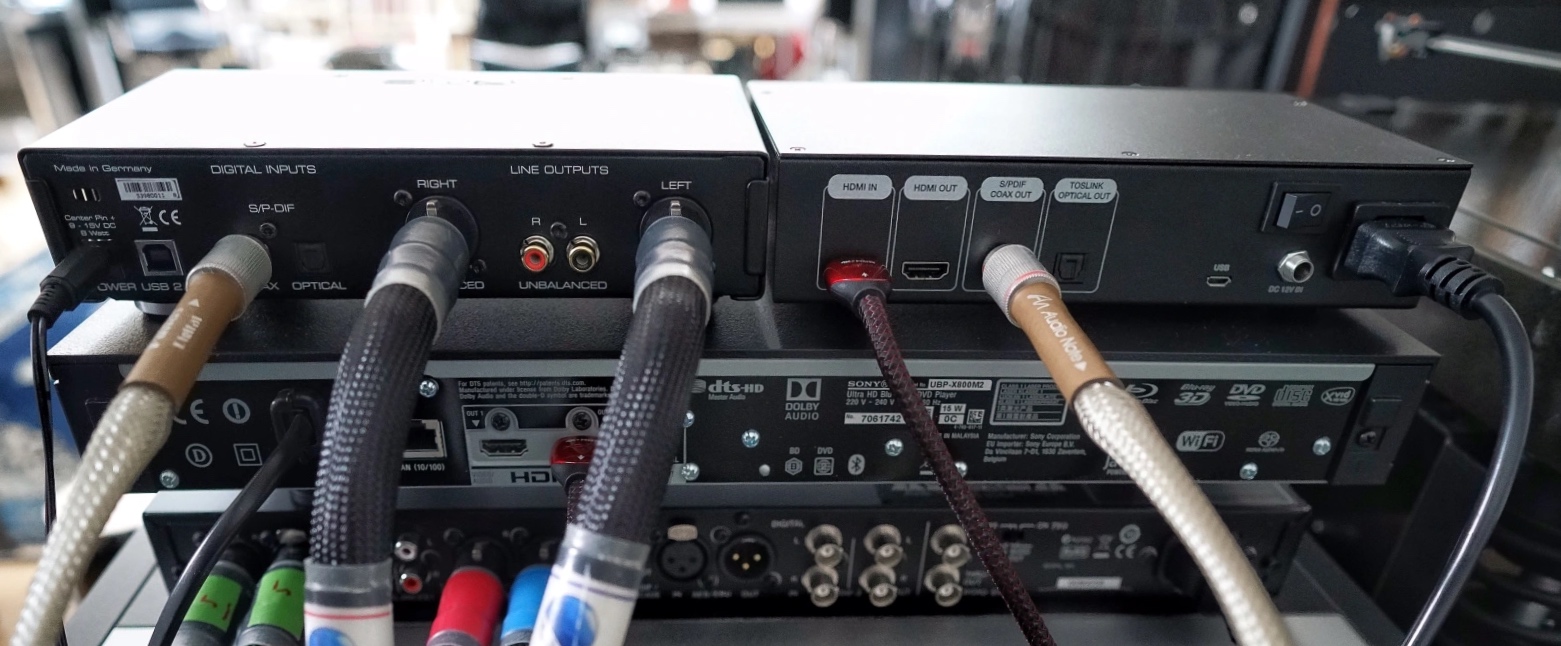

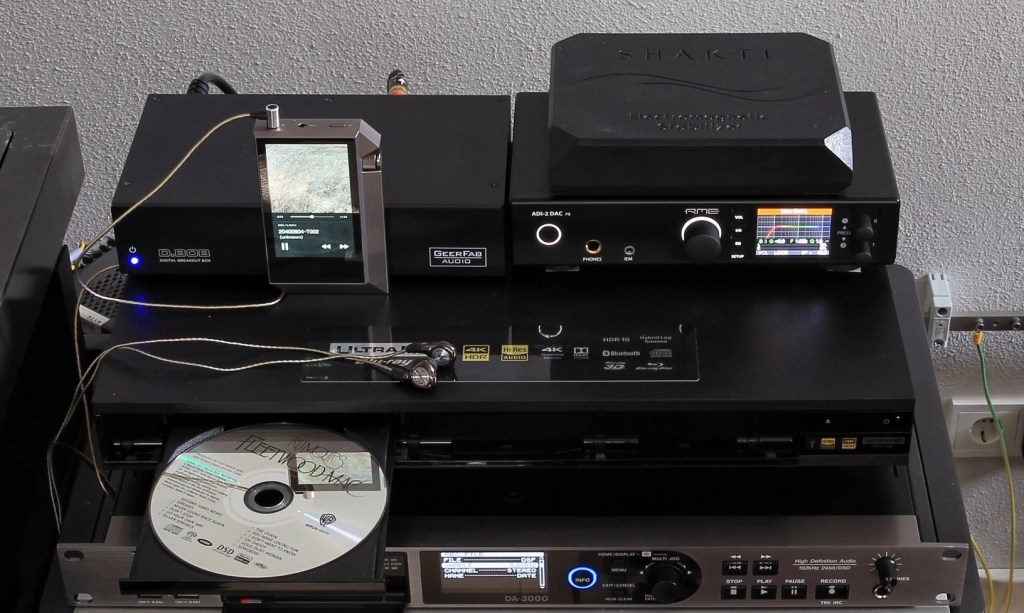

Using the HDMI input of the D.BOB unit (placed here on the left side) the data are put into DoP via HDMI Audioquest Cinnamon cable. The HDMI connection provides the full resolution (DSD64). In the next step a digital S/pdif  output from the D.BOB to the ADI-2 DAC (unit shown on the right side – a studio machine) is used to bring the extracted data via an Audio Note Pallas cable to my Tascam recorder using the analog XLR outputs from the ADI-2.
It is important to start the D.BOB first, then switching all other units, player, DAC and Tascam, into operational mode. The Tascam records DSD at 5.6 MHz. A 32 GB Micro SD card takes up to 7-8 SACDs and many analogue tapes.
